Sometimes setting up a tubeless ready wheel can make you wonder how a company managed to get away with saying their rim was tubeless ready. You spend hours trying to get the tire to seat. Working out harder trying to pump the tires up than you ever will out on the trail. Your vocabulary will be full of new swear words, and everyone will give you a wide berth.

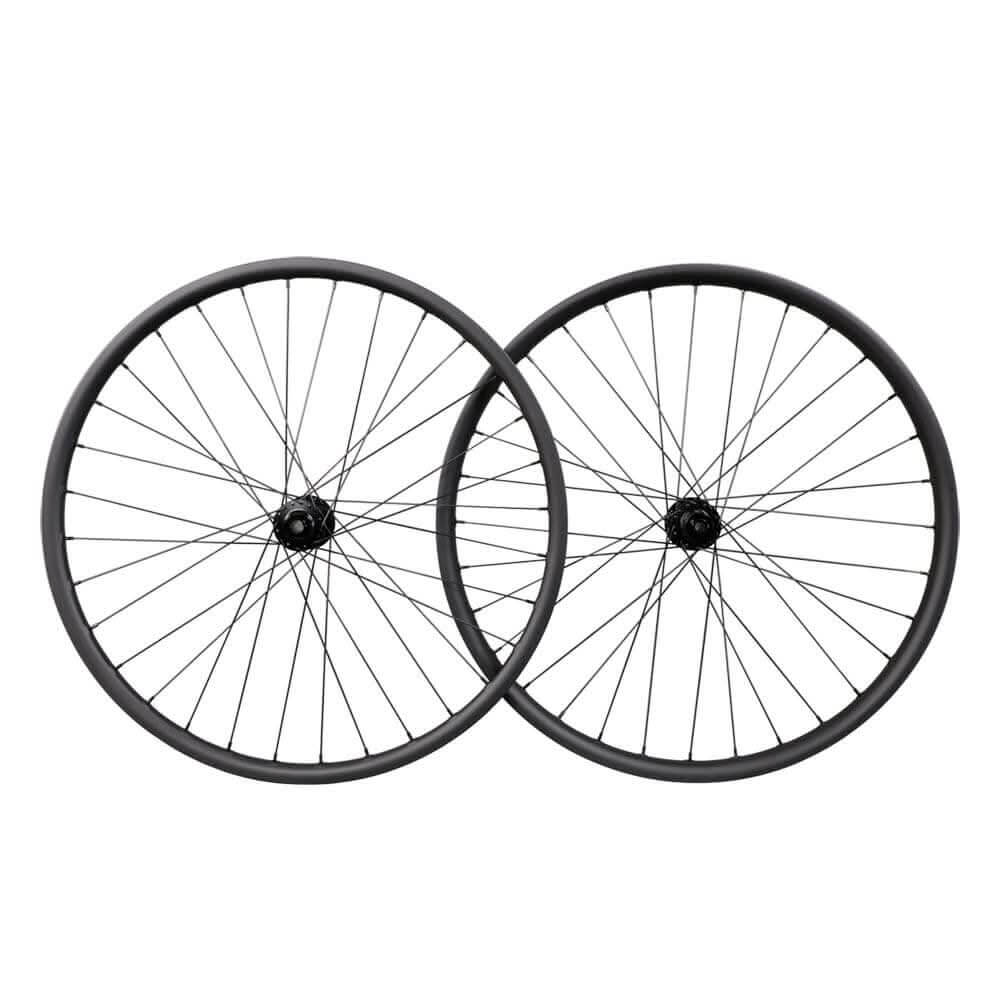

To help you keep your friends we have now got some hookless Boost ready mountain bike wheels. Hookless wheels, if you are wondering, are what car and motorbike companies have been using for years. It makes it easier to get tubeless tires to seal quickly and with a great bond that doesn’t let the air out.
The tech though does not end there. Our Toray T700 carbon rims are also asymmetric. Asymmetric rims are great for Boost applications. In asymmetric wheels, your spokes, Sapim Basic Leader since you asked, are offset from the center.
We use asymmetric rims on our Boost wheels as they allow better spoke triangulation. Doing so allows us to build you stronger and stiffer wheels. The goal for all new mountain bike wheels. The reason for this is that it enables the drive side and non-drive side spokes to be of equal tension.
Then to connect the wheel to your frame, we use DT Swiss 350S hubs in a 15 x 110 mm thru axle at the front and 12 x 148 mm thru axle at the back. With DT Swiss hubs you know your new wheels will last for a long time to come.
Technical Specifications
| Rim Type | Clincher: Carbon, tubeless-ready, Asymmetric/Hookless |
|---|---|
| MODEL | AM2934 |
| RIM MATRIAL | 100% Carbon Fiber Toray T700 |
| RIM DEPTH | 22mm-24.5mm |
| RIM WIDTH | External/Internal: 34mm/28.35mm |
| BREAKING SURFACE | NO |
| RECOMMENDED TYRE SIZE | 2.1''-2.5'' |
| FRONT SPOKE PATTERN | Two-cross |
| REAR SPOKE PATTERN | Drive-Side/Non-Drive: Two-cross |
| SPOKE COUNT | Front/Rear: 32/32 |
| SPOKE TYPE | Sapim Basic Leader Round |
| NIPPLE TYPE | CN |
| FRONT HUB | DT 350S, 15x110mm, sealed cartridge bearings |
| REAR HUB | DT 350S, 12x148mm, sealed cartridge bearings, Shimano 10/11 Speed |
| TYRE PRESSURE | Recomended<35psi |
| ERD | 593mm |
| ASYM OFFSET | 4mm |
| ASSEMBLE METHOD | Handbuilt |
| EXTRAS |
1 set of Thru Axle Front: 15*110mm Rear: 12*148mm |
| WHEELSET WEIGHT | Front/Rear/Total: 883g/1003g/1886g |
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
WHAT IS DIFFERENCE BETWEEN AERO OR AERO SPECIAL?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S RIM ROAD WHEELS?
About the difference,you can check out the info from the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure，please read the guide for recommended tire pressure.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear ：60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension：
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
HOW TO SET UP TUBELESS TIRE TAPE?
More info about tubeless tire tape,to read the guide
