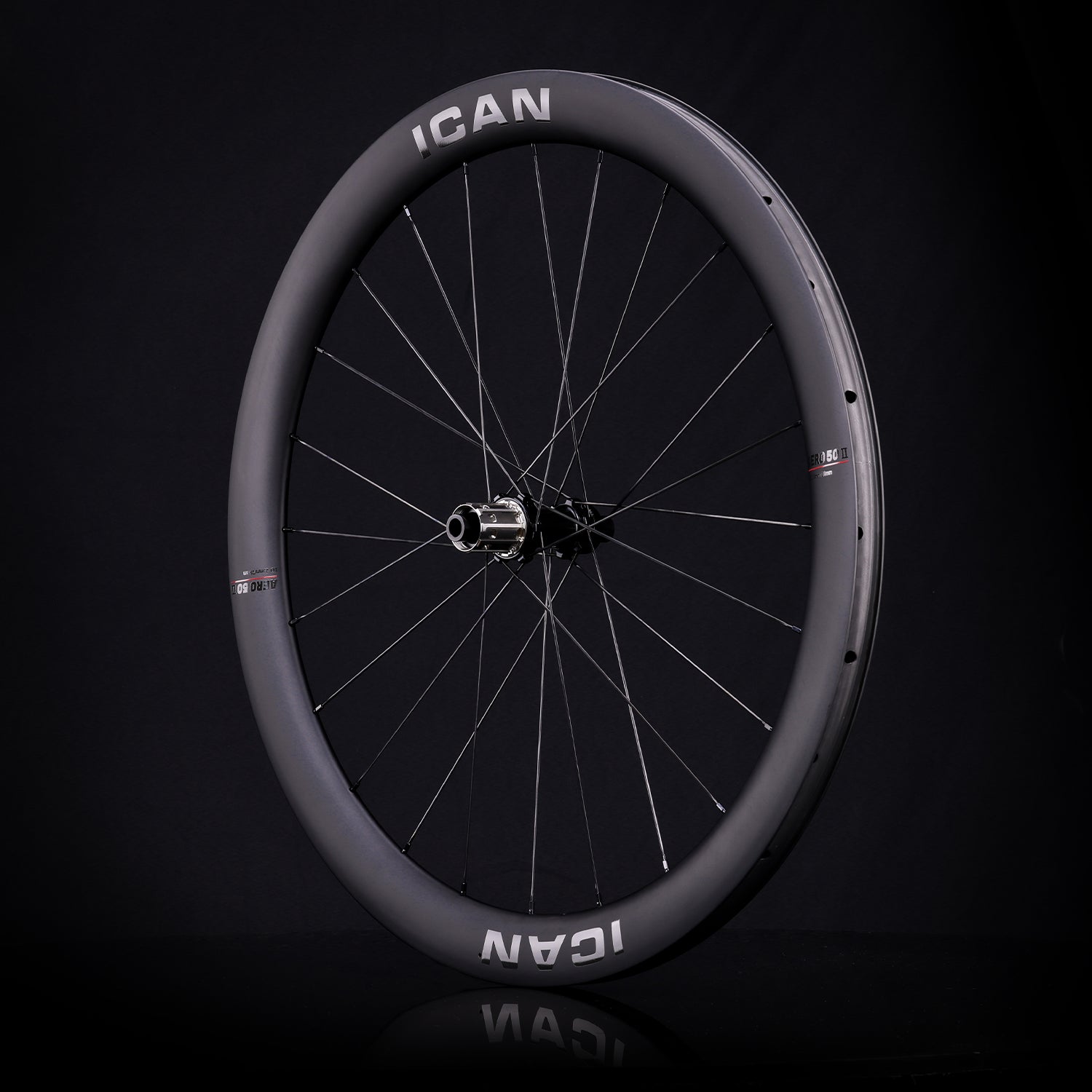

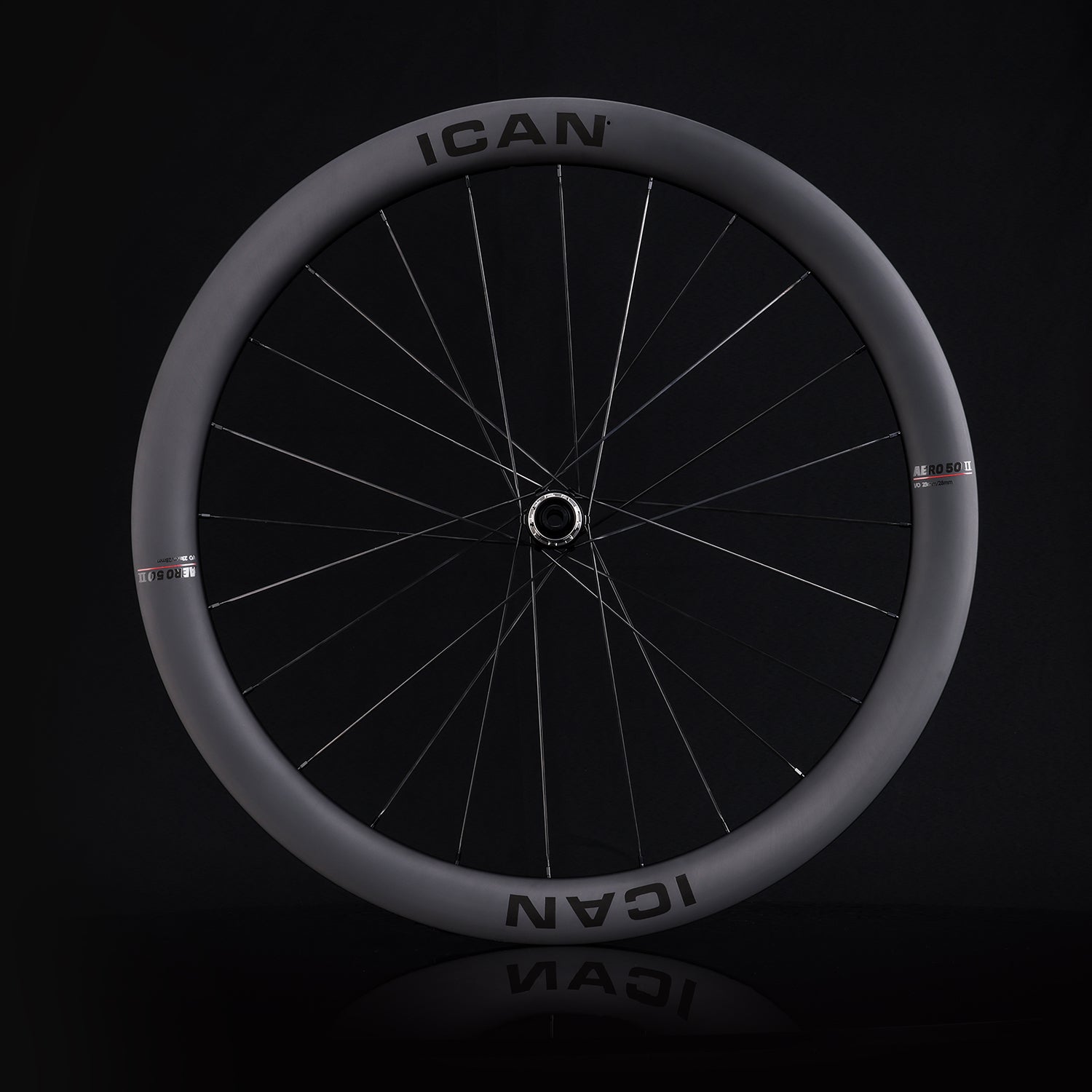

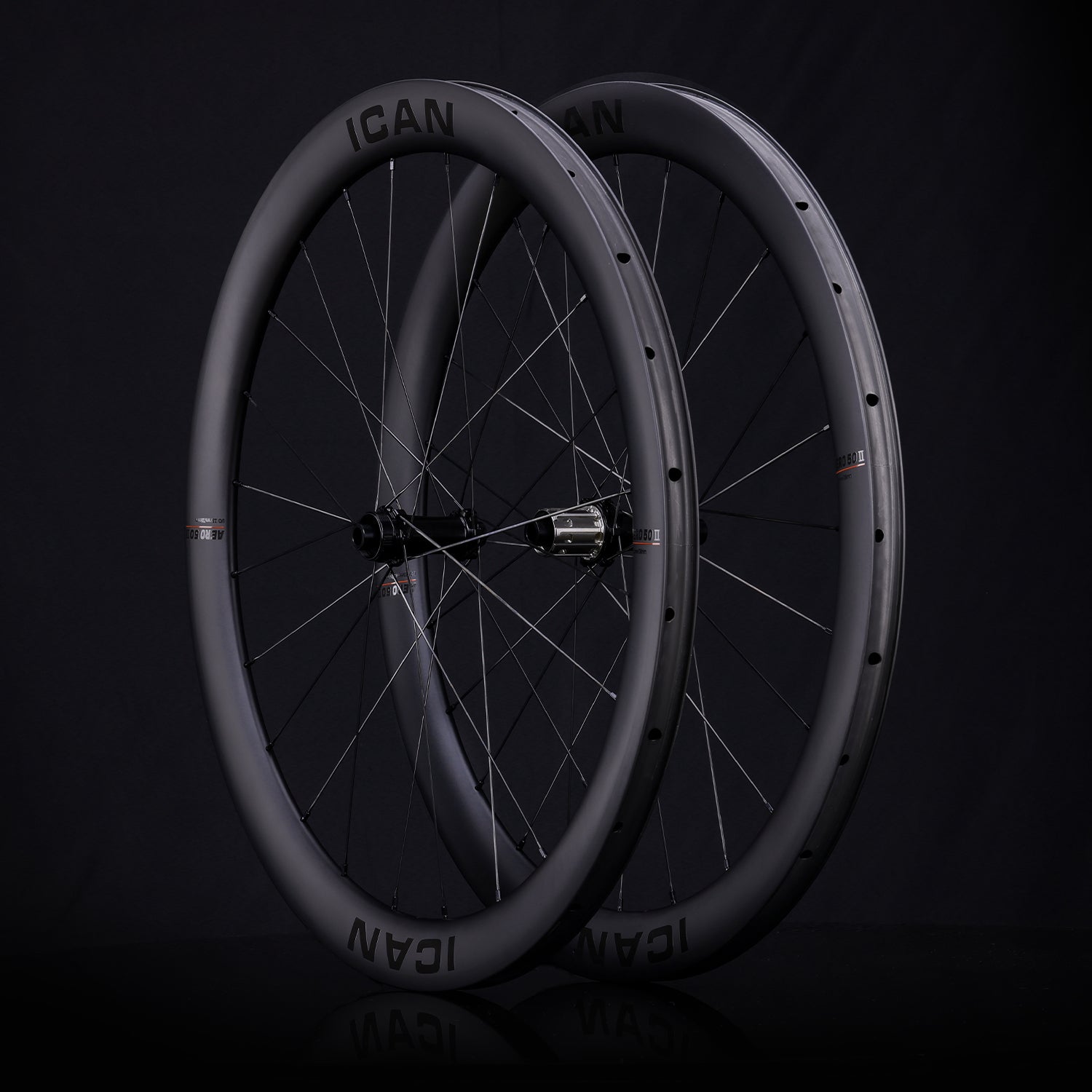

Our FL disc series was constructed out of Toray T700 carbon fiber. We used T700 as it allowed us to build a stiff and strong wheel rim. A rim that would not flex when you put the power down. A wheelset that could secure tubeless tires safely. A rim that helped to smooth turbulent air.
We wanted to keep all these great features but save some weight. We looked at our layup to see if it could be improved. After a lot of work, we discovered that the best way to lose weight was to combine Toray T700 carbon fiber with T800 carbon fiber.
The mixing of the fibers allowed us to build a wheelset with all the great qualities of the FL series but save around 100g per wheelset. Who wouldn’t want to save 100g?

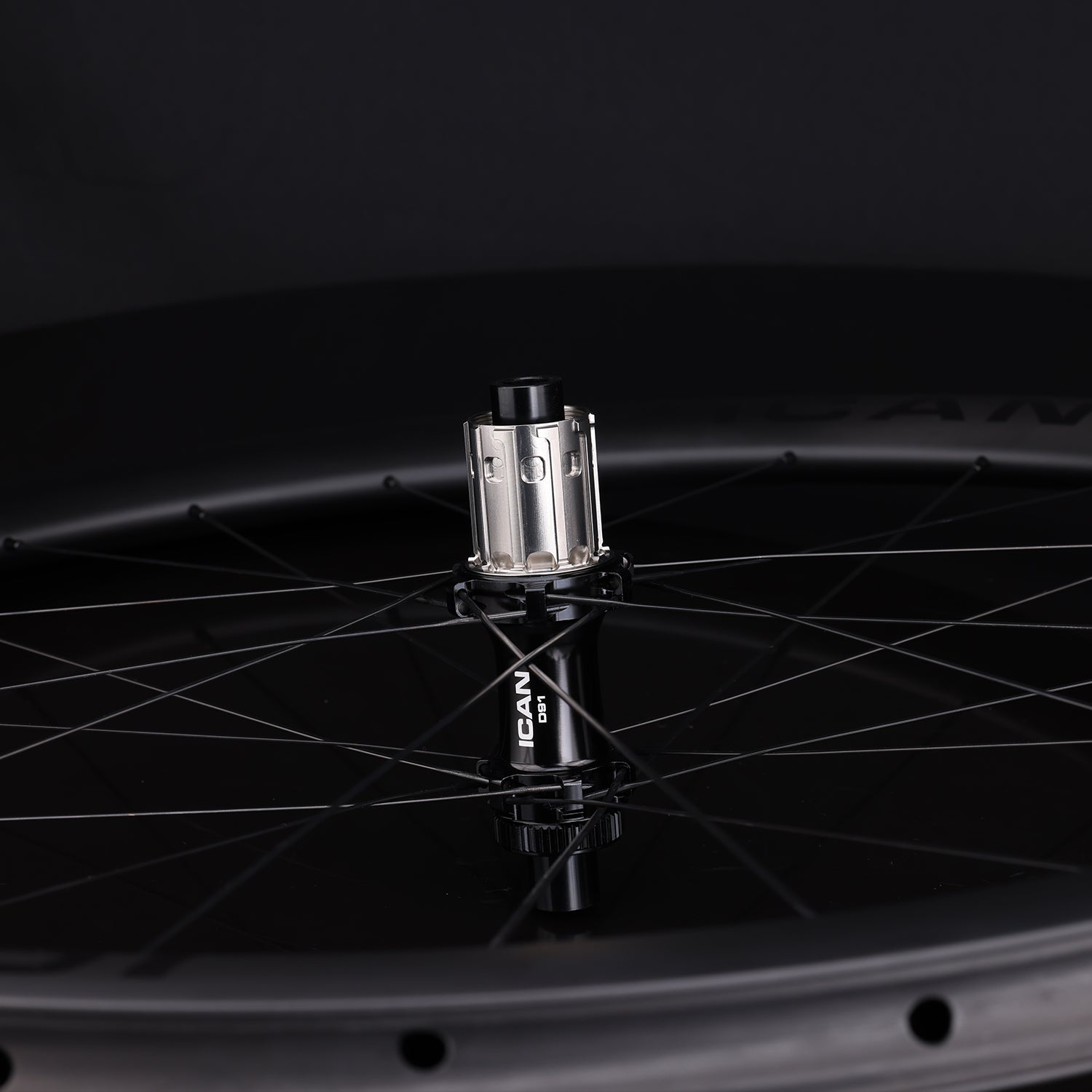

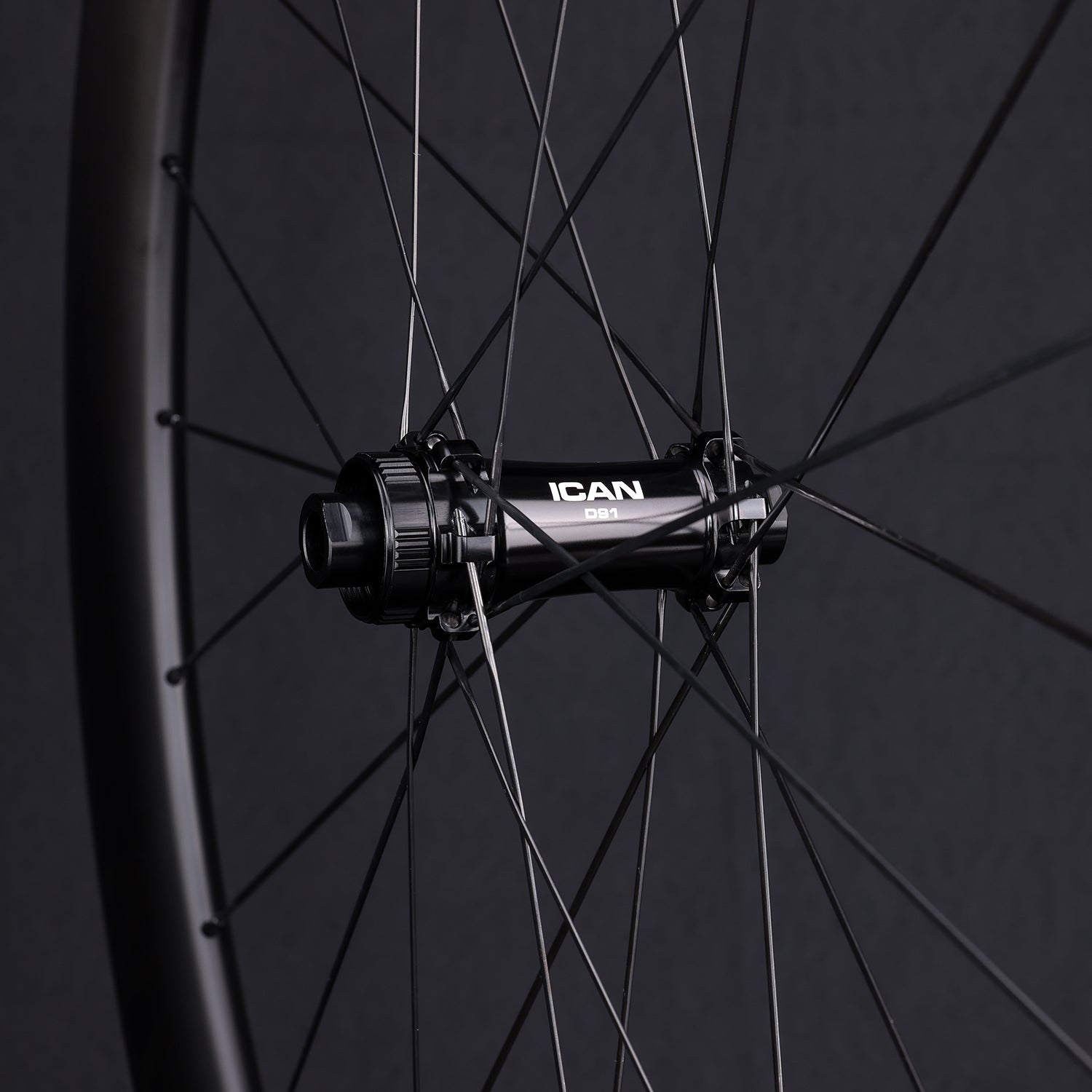

To go with our new Aero rim, we have a new disc brake hub. We have gone lighter with our sealed bearing hub as well. Our new D01 hub will take you further and longer before you need to service it and being of the sealed bearing variety that is very simple.
To lace our hub to our carbon fiber rim, we are using aero Sapim CX-Ray spokes. We can find no other spoke that combines the lightweight and stiff qualities of CX-Ray spokes.
These wheels have our two-year warranty. We stand behind our products.

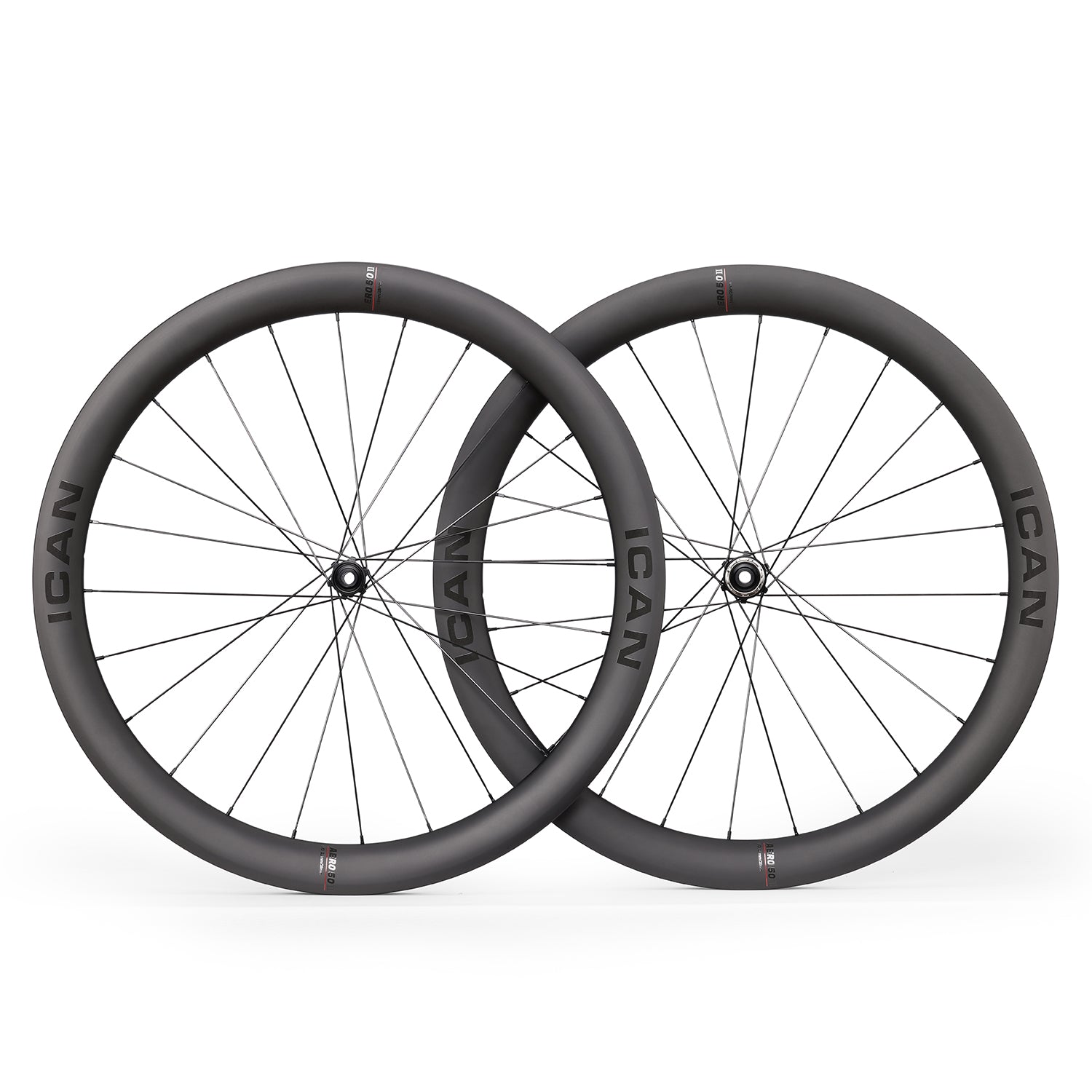

|Type||Carbon Disc Wheelset|
|Rims||Superlight AERO 50|
|Material||100% Carbon Fiber Toray T700 & T800|
Drills: 24/24 Holes
Inner Width: 18.35mm
Clincher Tubeless Ready
ICAN D01 Hubs
|Spoke||Sapim CX-Ray Spokes|
|Spoke Count||Front: 24 Rear: 24|
|Nipple||Alloy Color: Black|
|Cassette Compatibility||Shimano 10/11speeds|
Total: 1456+-20g (Centerlock, 12x100/12x142mm)
Front: 658+-10g Rear: 798+-10g
|Braking Surface||No Braking Surface|
|Recommended Tyre Size||700 x 25-40mm|
|Rider Weight Limit||105kg|
|Package Included||A pair of Wheelset (Thru Axles are not included)|
|Packing Size||81.5cm x 17cm x 65.5cm|
|Purchase Notes||Please use black rubber if use tubeless tyre. Tight the valve before pumping.|
You can Buy this wheelset from our overseas warehouse!
Enjoy free taxes, quicker shipment, included freight!

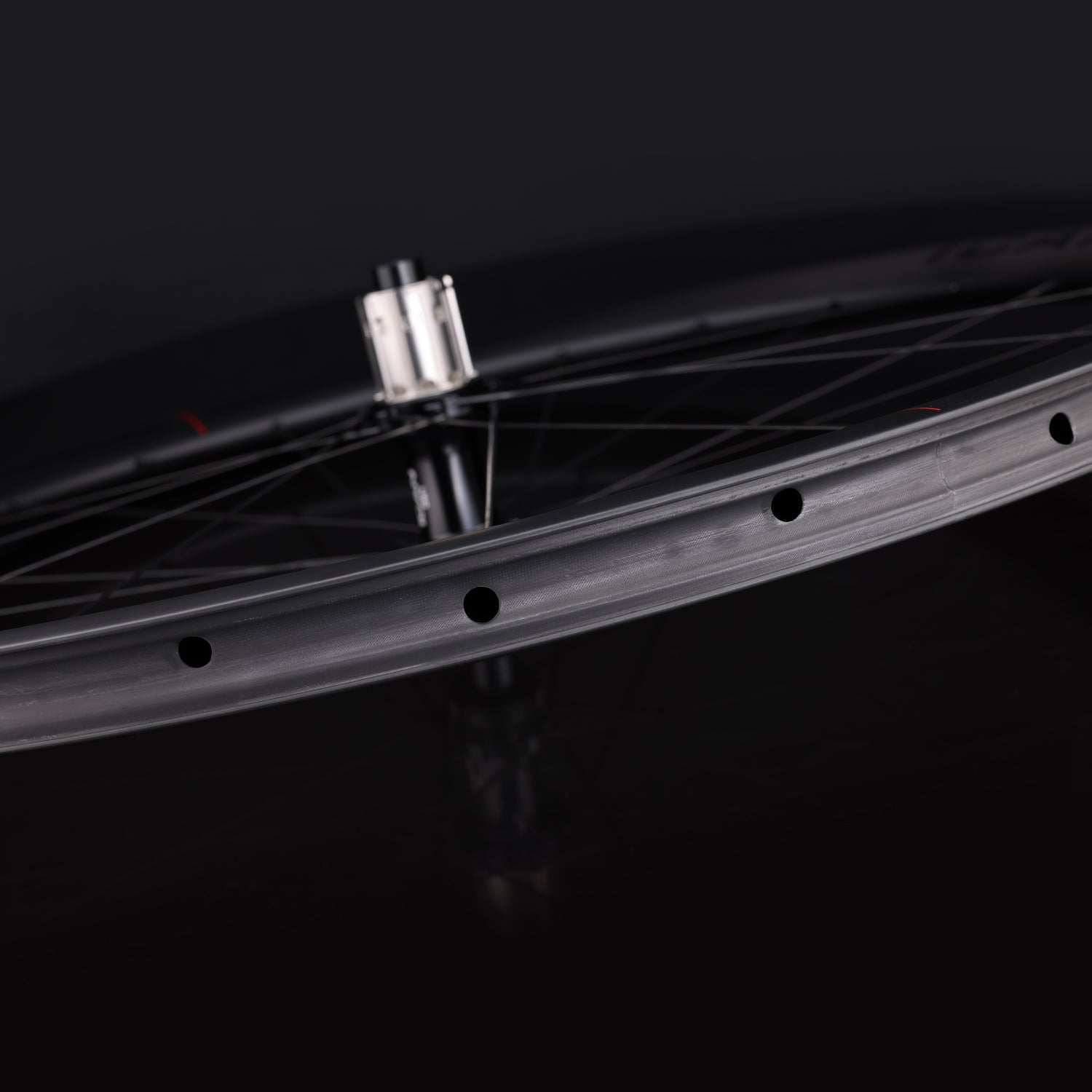

The Aero Series rims materialize from a combination of Toray T700 and T800 carbon fiber cloths. A marriage of these carbon cloths produces a lighter end product in comparison to a rim made only from Toray T700 carbon fiber cloth. The Aero Series rims is 25mm wide. Wide rims offer less rolling resistance and superior stability.
Endurable and Light Hub
ICAN D01 high-performance hubs which promote the effortless transition of power and smooth freewheel action.

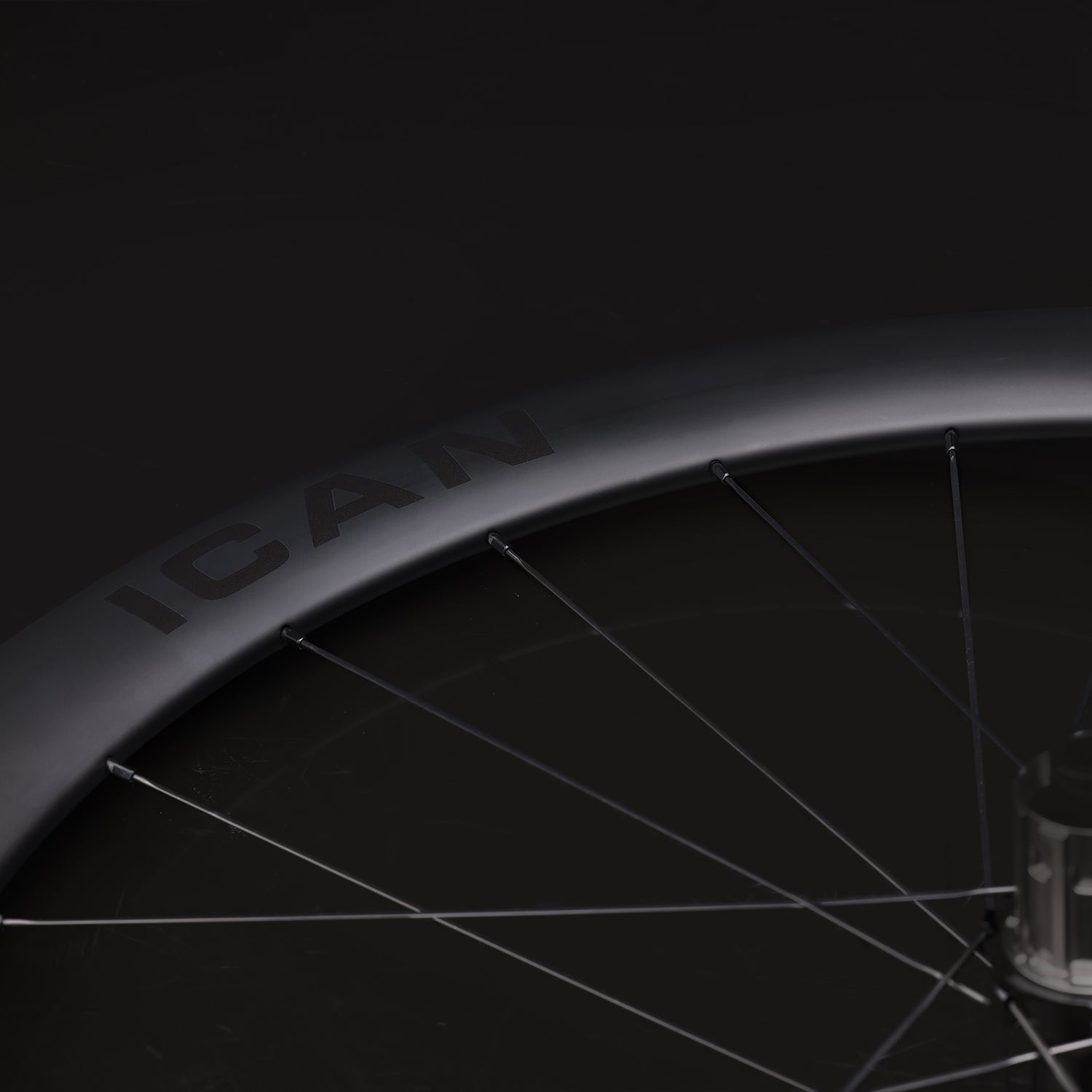

Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
ALLOY STRAIGHT PULL DISC HUB
Front: Sealed Bearings 2, weight: 85g
Rear: Sealed Bearings 4, weight: 238g
Sapim Secure Lock nipple is a locking mechanism that prevents nipples from untightening. Secure Lock nipple can achieve a stable and well defi ned deformation on the thread. Each nipple has an additional locking resistance of 18 +/- 3 cNm.
Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires.
Toray T700/T800 UD, 3K weave carbon-fiber on brake Track
50mm deep super-wide rounded aero section
25mm outer and 18.35mm inner width ideal for 25-40mm tire widths
Diameter: 2.0 - (0.9x2.2) - 2.0 mm
Strength on middle section: 1600 N/mm2
No extra hub hole design; hub manufacturer‘s guarantee is unaffected
More long-lasting than any other spokes on the market
Straight-pull for excellent torsional strength and direct power transfer
Special alloy treatment and sophisticated production
Produced from high-tensile, fatigue-resistant 18/8 stainless steel conforming to the Sapim quality standard specifications
TaperLock spoke interface
Forged and CNC’d 6061-T6 heat treated aluminum alloy body
3x treble-tooth pawl engagement for instant acceleration - 7.5 degrees engagement
7075-T6 aluminum alloy axles
Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
Straight pull hub, high quality Japanese sealed EZO bearings
- Can be used on truing machine
- No loose function while truing the wheel
- Available on most current Sapim nipples
- Easy to recognize
The maximum tire pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. 100 psi is more than enough for any rider on the road
Maximum tire pressures for other tire sizes: 30mm do not exceed 80psi, 33mm do not exceed 60psi, and 35-45mm do not exceed 40psi
Please do not exceed the maximum pressure stated on your tire
Suitable for tires from 25mm up to 40mm wide.
