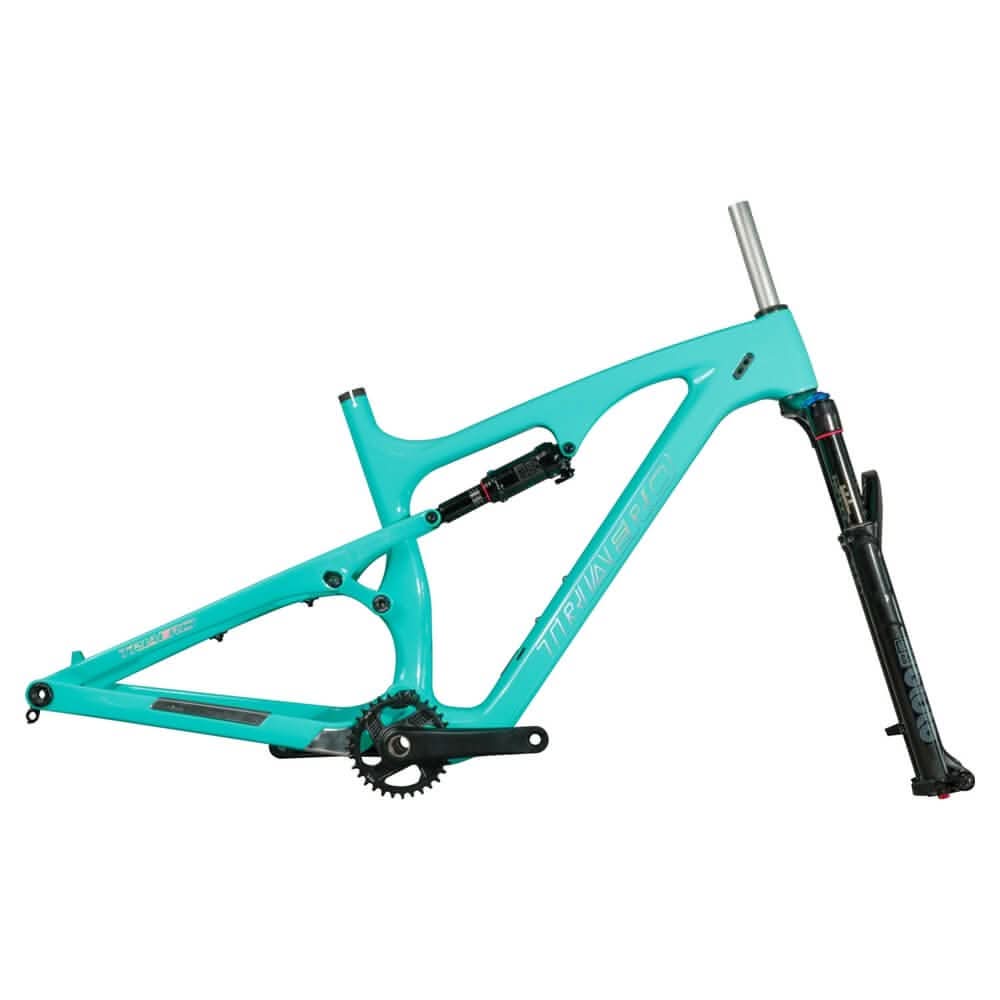

1× & 2×Drivertrains Compatible
This frame is compatible with both 1×and 2× drivertrain setups. A removable
direct mount front derailleur bracket allows for a clean 1× build.RockShox Bluto Suspension Fork Compatible
120mm travel. Tapered steerer tube. 150×15mm thru-axle hub spacing, 74mm standard post mount fork.
Frame Travel 120mm, Rear Shock 200mm Size
SN04 fat bike frame travel design as 120mm, use 200mm size rear travel, recommend Rockshox Manarch XX.200x51mm.
High-modulus Carbon Fiber Frame
This material offers improved stiffness, better vibration damping, excellent strength and weight savings compared to other materials.
This frame offers a 350g weight savings over the aluminum version.
All Internal Cable Routing, Best Protection And Easy Maintenance
Frame design, hide the brake cable and shift cable inside the frame. This not only provides cables best protection and easy maintenance.
And reduce frame weight, maintaining a high quality and high standards
Chainstay Guard let the chain do not touch the frame by accident.
12x197mm Symmetrical Rear Spacing
The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight.
|Type||Fat bike frame 26er|
|Material||100% carbon fiber Toray T700|
|Seat clamp Size||37mm|
|Frame Size||16/18/20 inch|
|Headtube||Top 1-1/8",down 1- 1/2"|
|BB||BSA(120mm BB Shell)|
|Disc Rotor Size||160mm(front and rear)|
|Wheel & Tire Options||
26×3.8—4.8” on up to a 100mm rim
29×2.25—3” (including 29+)
1x seatpost Clamp
1x rear thru axle
What is difference between Aero or Aero special?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure，please read the guide for recommended tire pressure.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S SERIES PRODUCTS?
About the difference,you can check the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear ：60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension：
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
