|Full Carbon Suspension MTB frame
|100% carbon fiber Toray T700
|Front 180mm, Rear 160mm
|2410g (M, UDM), 2445g(S, Pink)
|Top 1-1/8",down 1- 1/2"
27.5 *2.8'' or 29* 2.35''
If XDR groupset , 27.5*2.5" or 29*2.3'
Rear Shock Eye to Eye: 200*51mm or 200*57mm
Rear Shock Hardware: 22.2mmx8mm
Front Fork Travel: 130-140mm for 29er wheels (140-150mm for 27.5 plus wheels)
Disc Rotor size:160mm
Supported Rear Shock ：
- FOX Float DPS Factory
- Rockshox Monarch 200*51mm

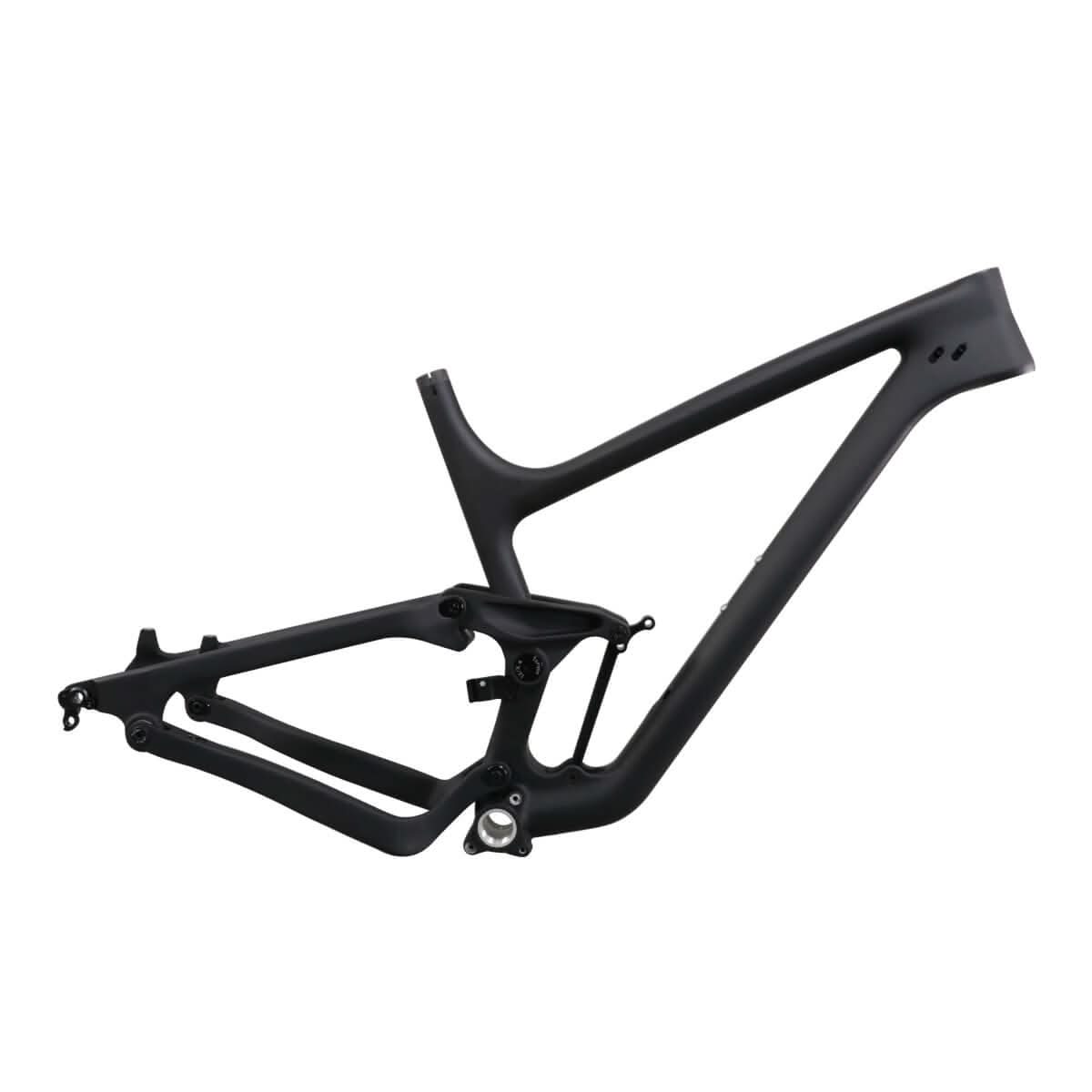

Ready to build up your own light and durable carbon Trail/AM MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This P1 frame from ICAN Cycling is a light in durable options for those looking for a full suspension with 130mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable BSA English Threaded bottom bracket, this frame is for those looking to be efficient, yet bomb decents with some big jumps thrown in.
This frame is designed in the style of Trek Fuel, and can take 29er or 27.5+ wheels. The frame can take up 130-140mm fork in the front with 29er wheels and 140-150mm fork with 27.5+ wheels.
Can I use a 68mm bsa bottom bracket for a size large P1 frame?
XS-2350+-40g (UD Matt )
S-2380+-40g (UD Matt )
M-2430+-40g (UD Matt )
L-2470+-40g (UD Matt )
XL-2490+-40g (UD Matt )
The whole mountain bike world has gone boost crazy. This has probably made you feel like you want a boost frame. The only thing to hold you back has cost, well now we have built you the solution to your problem. Behold our carbon fibre full suspension boost mountain bike frame.
To keep prices down, we have concentrated on our R&D and not our marketing department or fancy name professionals. Nope, we are only interested in creating the best carbon fibre cycling products for you. Our boost frameset perfectly fits that mentality by being entirely up to date, very high quality and high tech but it does not feature a high price tag.
Instead of building with dollar or pound signs it comes bulging with features. The frame is constructed from Toray T700 carbon fibre. Allowing our engineers to create a lightweight and stiff frame. They have achieved extra stiffness by using a 148mm by 12mm rear end. Making it possible for the frame to become wider; this helps to stiffen up pivot joints and make them longer lasting.
With 130mm of travel and a BSA bottom bracket, you can be sure that this frame will be capable of taking you anywhere with a nice amount of travel and a reliable bottom bracket system. To add to the reliability, we have used our famous internal routing system for making sure your cables and hoses can be fitted quickly and easily.
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
WHAT IS DIFFERENCE BETWEEN AERO OR AERO SPECIAL?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S RIM ROAD WHEELS?
About the difference,you can check out the info from the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure，please read the guide for recommended tire pressure.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear ：60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension：
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
HOW TO SET UP TUBELESS TIRE TAPE?
More info about tubeless tire tape,to read the guide
