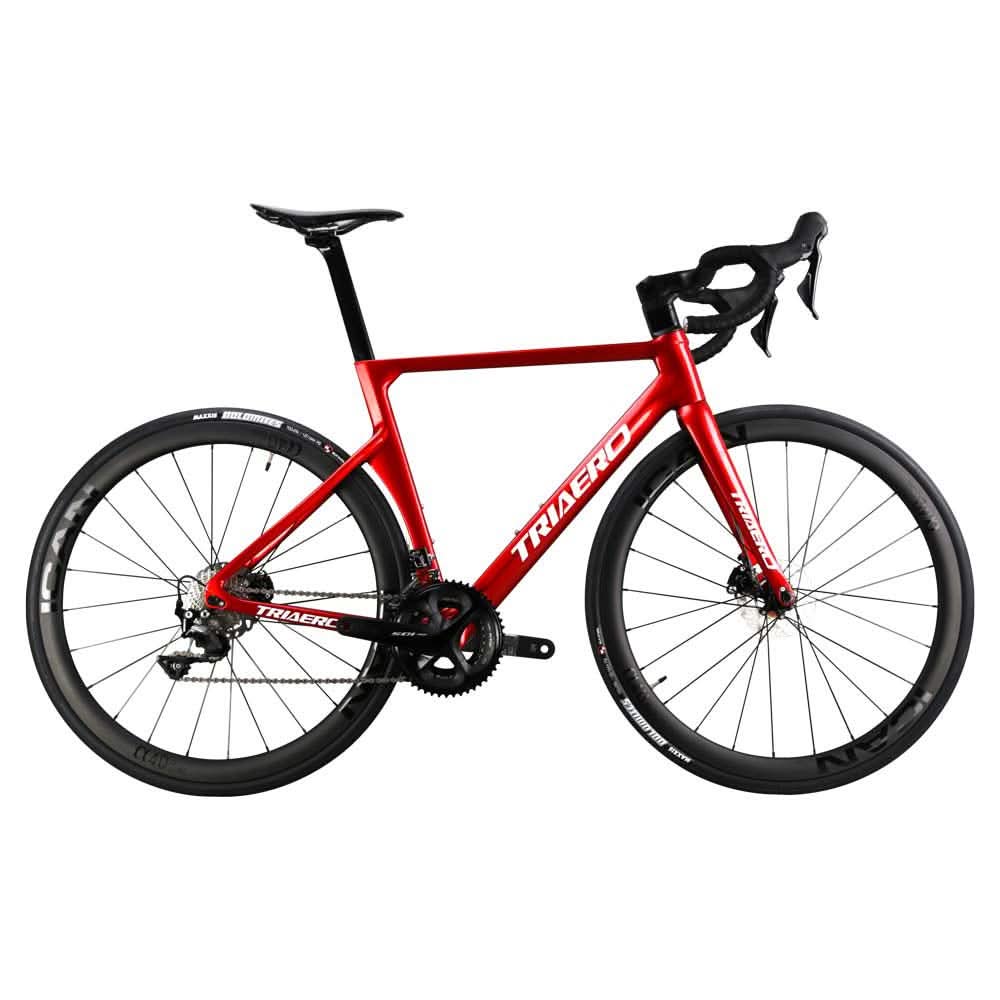

AERO Road Disc Bike A22

Product Code: Bike-A22-shimano R7020-45

Availability:In stock

$ 2,599.00 USD 2,599.00

Available Options

Qty

Full carbon Frame:

This bike is equipped with A22 carbon frame produced by ican. The frame size is 52cm. If you want other size frame to fit your height,please choose other size frame.

The 52cm carbon frame weight is 1050+_50g.The rear spacing of the frame is 142*12mm,which use the 140mm flat mount.

Tire

We fit the 28mm MAXXIS DOLOMITES tire for the bike,The max psi is 120 psi.

If you want to replace the other brand tire for yourself,please choose the 25mm tire to assble. 28mm tire only suitable for maxxis brand.

Recommended Tire:25mm.

Front fork :

We use the red carbon rigid fork.The Front fork spacing is 100*12mm.

Carbon Wheelset:

We use the ICAN Alpha 40 disc wheels as the parts of carbon bike A22.

The wheels has the 40mm depth,25mm width carbon rim,which also support the tubeless ready tire.

Groupset:

DRIVERTAIN----SHIMANO R7020

Groupsets is the core component of the bike, and we use the trusted big brand shimano groupsets: SHIMANO R7020.

More info about shimano R7020 from official

Crank :

172.5mm SHIMANO 105 FC R7000 crank balances weight and efficiency without sacrificing stiffness. Its wider gear pitch increases clearance with small gearings on modern 135mm O.L.D. frames.

Others:

Headset: 1-1/2'' to 1-1/2''

Stem: Carbon ST05-90mm

Handlebar: HB005-420mm

Saddle: Carbon SD006

Complete Bike Weight: 7.6kg (excluding pedal)

What is difference between Aero or Aero special?

Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.

IS ICAN WHEELS AND FRAME GOOD?

YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.

What is the best tire size for my ICAN wheels?

The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.

We find(Not necessarily 100% correct):

  • With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
  • For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
  • Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.

What is the recommended tire pressure

If you want the right tire pressure,please read the guide for recommended tire pressure.

WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.

WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.

Why do i feel the freehub is a bit tight when backpedal

When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.

CAN ICAN WHEELS BE SET UP TUBELESS?

For ICAN’s current line up of wheels, most of wheels is tubeless compatible.

WHAT'S THE DIFFERENCE BETWEEN ICAN'S SERIES PRODUCTS?

About the difference,you can check the image.

the difference between wheels

What is the difference between Alpha Disc and Aero Disc

The main difference between theses carbon road wheels is rim,spoke,hub.

1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.

2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.

What is the suitable spokes tension

MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear :60% kilograms force of drive side Rear-wheel

Road bike wheels spoke tension:
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force

Recommended maximum spokes tension: Less than 145 kgf.

More spoke tension info here.

How to track my order online?

Once your order has shipped, a Shipping Confirmation email is sent to you with the tracking website and the tracking number. You can use this tracking number to track your order via the carrier's tracking site.

What is the processing time and delivery time for my order?

We will ship out the item within 36 hr with careful package after the processing time .and it takes about 3-10 days if the stock running out. The delivery time will epends on the courier method.

Noted:Due to the impact of the epidemic, the arrival time of the goods will be delayed.Due to increased demand, this product will ship in 7 – 8 weeks. If have any questions,please contact us in time.

How to pay by credit card without paypal account

You can pay by credit card without paypal account. Check the payment guide here.
