We have recommended the best combination for you, if you are looking for the frame and wheelsets to build your full bike, you can buy them together.
You will get more affordable price. You only need to spend the cost of a big brand frame, you can get the frame and wheelset together with big brand

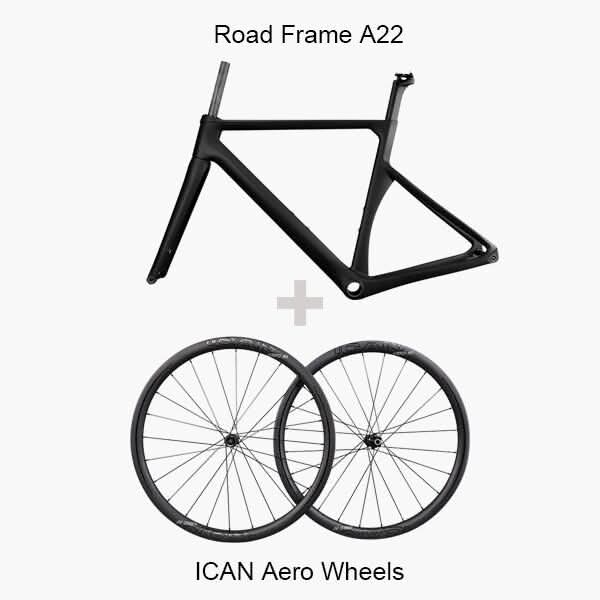

ICAN A22 FRAME
| Type | New Aero Carbon Road Disc Brake Frame |
| Material | Toray T700 Carbon |
| Size | 45/48/51/54/57cm |
| Fork | AO22 specify carbon fork |
| Handlebar width & Stem | 400*90mm/420*110mm |
| Headtube | Straight 1 1/2" head tube |
| Weight | 45cm 1058g 48cm 1070g 51cm 1092g 54cm 1115g 57cm 1248g |
| Seatpost |
Adjustable Seatpost |
| Bottom bracket | BB86 |
| Max tire clearance |
700*28c 700x28c（maxxis tire can be supported） |
| Brake mount type |
Flat mount Disc brake 140mm |
| Dropout | Front 12*100mm thru-axle Rear 12*142mm thru-axle |
| Groupset | Recommended install electronic shifting groupset |
| Handlebar&stem | Compatible with ICAN handlebar HBA22 |
|
Test Standard |
ISO4210 |
| Type | Carbon AERO Disc Wheelset |
| Rim | Superlight AERO |
| Material | Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim Wide |
35mm: External: 29mm Inner : 21.5mm 40mm: External: 25mm Inner : 18.35mm 45mm: External: 25mm Inner : 18.35mm 46mm: External: 28.4mm Inner : 21mm 50mm: External: 25mm Inner : 18.35mm 55mm: External: 25mm Inner : 18.35mm |
| Depth | 35/40/45/46/50/55mm |
| Profile | Clincher Tubeless Ready |
| Hub | ICAN D01 Hub (Centerlock, 12x100/12x142mm) |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 10/11speeds |
| Wheelset Weight |
AERO 35 Disc：Total: 1347g Front: 601g Rear: 746g AERO 40 Disc：Total: 1355g Front: 605g Rear: 750g AERO 45 Disc：Total: 1407+-20g Front: 631g Rear: 776 AERO 46 Disc：Total: 1559g Front: 705g Rear: 854g AERO 50 Disc：Total: 1430g Front: 645g Rear: 785g AERO 55 Disc：Total: 1467g Front: 657g Rear: 810g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-30mm |
| Rider Weight Limit | 110kg |
| Guarantee | 2 years |
| Free | 1 set of skewer (Length: 155/175mm) |
| Packing Size | 81.5cm x 17cm x 65.5cm |
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
WHAT IS DIFFERENCE BETWEEN AERO OR AERO SPECIAL?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S RIM ROAD WHEELS?
About the difference,you can check out the info from the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure，please read the guide for recommended tire pressure.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear ：60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension：
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
HOW TO SET UP TUBELESS TIRE TAPE?
More info about tubeless tire tape,to read the guide
How to track my order online?
Once your order has shipped, a Shipping Confirmation email is sent to you with the tracking website and the tracking number. You can use this tracking number to track your order via the carrier's tracking site.
What is the processing time and delivery time for my order?
We will ship out the item within 36 hr with careful package after the processing time .and it takes about 3-10 days if the stock running out. The delivery time will epends on the courier method.
Noted：Due to the impact of the epidemic, the arrival time of the goods will be delayed.Due to increased demand, this product will ship in 7 – 8 weeks. If have any questions,please contact us in time.
How to pay by credit card without paypal account
You can pay by credit card without paypal account. Check the payment guide here.
