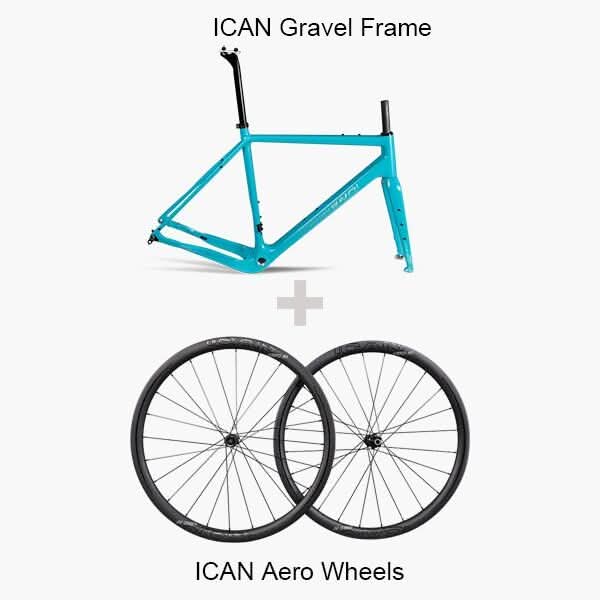

We have recommended the best combination for you, if you are looking for the frame and wheelsets to build your full bike, you can buy them together.

You will get more affordable price. You only need to spend the cost of a big brand frame, you can get the frame and wheelset together with big brand

AERO SERIES WHEELS
$ 1,604.00 USD
$ 1,604.00 USD
Gravel Frame Size: 54cm
Aero Series Wheels: AERO 35 DISC
10 customers are viewing this product
Gravel Frame+Carbon Wheels|Gravel Bike Buiild

Gravel Frame+Carbon Wheels|Gravel Bike Buiild

$ 1,604.00 USD

Gravel Frame+Carbon Wheels|Gravel Bike Buiild

$ 1,604.00 USD
Gravel Frame Size: 54cm
Aero Series Wheels: AERO 35 DISC

Gravel Frame+Carbon Wheels|Gravel Bike Buiild

We have recommended the best combination for you, if you are looking for the frame and wheelsets to build your full bike, you can buy them together.

You will get more affordable price. You only need to spend the cost of a big brand frame, you can get the frame and wheelset together with big brand

AERO SERIES WHEELS
Type  Carbon AERO DiscWheelset
Rim  Superlight AERO
Material  Carbon Fiber Toray T700 & T800
Size  700C
Rim Wide

35mm: External: 29mm Inner : 21.5mm

 40mm: External: 25mm Inner : 18.35mm

 45mm: External: 25mm Inner : 18.35mm

 46mm: External: 28.4mm Inner : 21mm

 50mm: External: 25mm Inner : 18.35mm

 55mm: External: 25mm Inner : 18.35mm

Depth  35/40/45/46/50/55mm
Profile  Clincher Tubeless Ready
Hub  ICAN D01 Hub (Centerlock, 12x100/12x142mm)
Spoke  Sapim CX-Ray Spokes
Spoke Count  Front: 24   Rear: 24
Spoke Pattern  Front: 2-cross
 Rear: 2-cross

Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 10/11speeds
Wheelset Weight



AERO 35 Disc:Total: 1347g Front: 601g  Rear: 746g

AERO 40 Disc:Total: 1355g Front: 605g  Rear: 750g

AERO 45 Disc:Total: 1407+-20g  Front: 631g  Rear: 776

AERO 46 Disc:Total: 1559g Front: 705g  Rear: 854g

AERO 50 Disc:Total: 1430g Front: 645g  Rear: 785g

AERO 55 Disc:Total: 1467g Front: 657g  Rear: 810g

Braking Surface  No Braking Surface
Recommended Tyre Size  700 x 25-30mm
Rider Weight Limit  110kg
Guarantee  2 years
Free  1 set of skewer (Length: 155/175mm)
Packing Size  81.5cm x 17cm x 65.5cm



ICAN Gravel

Frame X-Gravel  (Flat mount)
Seatpost (SP01)  400 x 27.2mm
Material  Toray T700 carbon
Weave  UDM/Painting
Brake Type Disc



Headtube  1-1/8",1-1/2"
BB BSA
Available size  49/52/54/56/58cm
Max tire size

MTB-29er x 1.95inch

Road disc-700C x 45mm

Cable plug  Internal Cable Routing
Axle  100*12mm/142*12mm
Rotor Size Front: 140mm; Rear: 140mm
Package included Frame+fork+seatpost+headset

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels
