Description
Frame |

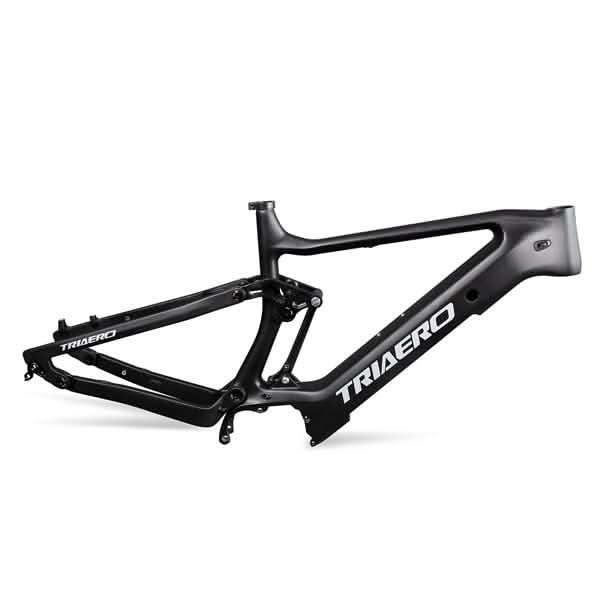

Enduro Ebike frame |
Material |
High modulus Toray T700 carbon fiber |
Size option | 17inch/19 inch |
Headtube |
head tube:
(Headset FSA No.57E) |
Weight |
16inch frame: 3300±45g |
Seatpost |
31.6mm (34.9mm seat clamp) |
Recommended Motor System: |
Bafang brand: M500(95NM) |
Suppory Battery |
Bafang brand:
|
Max Tire Clearance |
|
Rear travel | 150mm |
Rear shock size |
185*55mm (trunnion mount) |
Brake Type |
Post Mount Disc brake 180mm disc rotor |
Dropout |
Thru Axle 12*148mm |
Max Chainring | 32T |
Test Standard | ISO4210 |
Warranty | 2 years |
What frame material to use for the ebike
We use the advanced carbon fiber material to manufacture the ebike frame
What enduro ebike frame kit does E11 use?
The ebike frame kit has 1/8 "- 1 1/2"head tube
Seatpost Diameter:
31.6mm(34.9mm seat clamp)
What rear shock size i should use?
Rear shock size 185*55 trunnion mount and bushing kits for low end 22*10mm
Notice: You need to use Bafang BT F03(450Wh) or BT F04(600Wh) battery for the ebike frame,and Bafang M500(95NM) or M600(120NM) mid-drive engine system.
Why we choose Bafang drive system
As the picture show,the weight,rated power,max torque is different.The M500 drive system comes 95 Nm of torque.M600 has enormous 120 Nm of torque.
If you want your ebike to be lighter and ride a short distance, and with a small budget,the M500 is good choice.
M500
M500 Drive Dystem Designed for high performance eMTB drive systemWhen the trail gets steep and technical, the M500 drive system comes into its own. With enormous 95 Nm of torque it delivers consistent, powerful and efficient support. Two speed sensors and a torque sensor ensure perfectly-tuned and sensitive power output. With this high-performance and lightweight (3.4kg) system riding your favourite singletrail twice might not even be enough.
Bafang M500 Features:
- MMG520 43V 250W 27.5,75*584
- Motor cover
- Both sides Crank
- 32T chainring (single speed)
- C230 display( 0-5S, Default KM,1 speed, 25KM, 27.5'')
- EB -BUS Both front ant rear
- Speed sensor
- Light cable
- 43V 2A charger (EU standard) ( 0-5S, Default KM,1 speed, 25KM, 27.5'')
- Motor protection bracket
What battery should I equip the ebike frame
We recommend using bafang brand batteries( BT F03/BT F04)to make your ebike frame run well.
The difference between the BT F03/BT F04
- Battery capacity
- Battery weight
- charging time
FAQS
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
WHAT IS DIFFERENCE BETWEEN AERO OR AERO SPECIAL?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S RIM ROAD WHEELS?
About the difference,you can check out the info from the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure,please read the guide for recommended tire pressure.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear :60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension:
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
