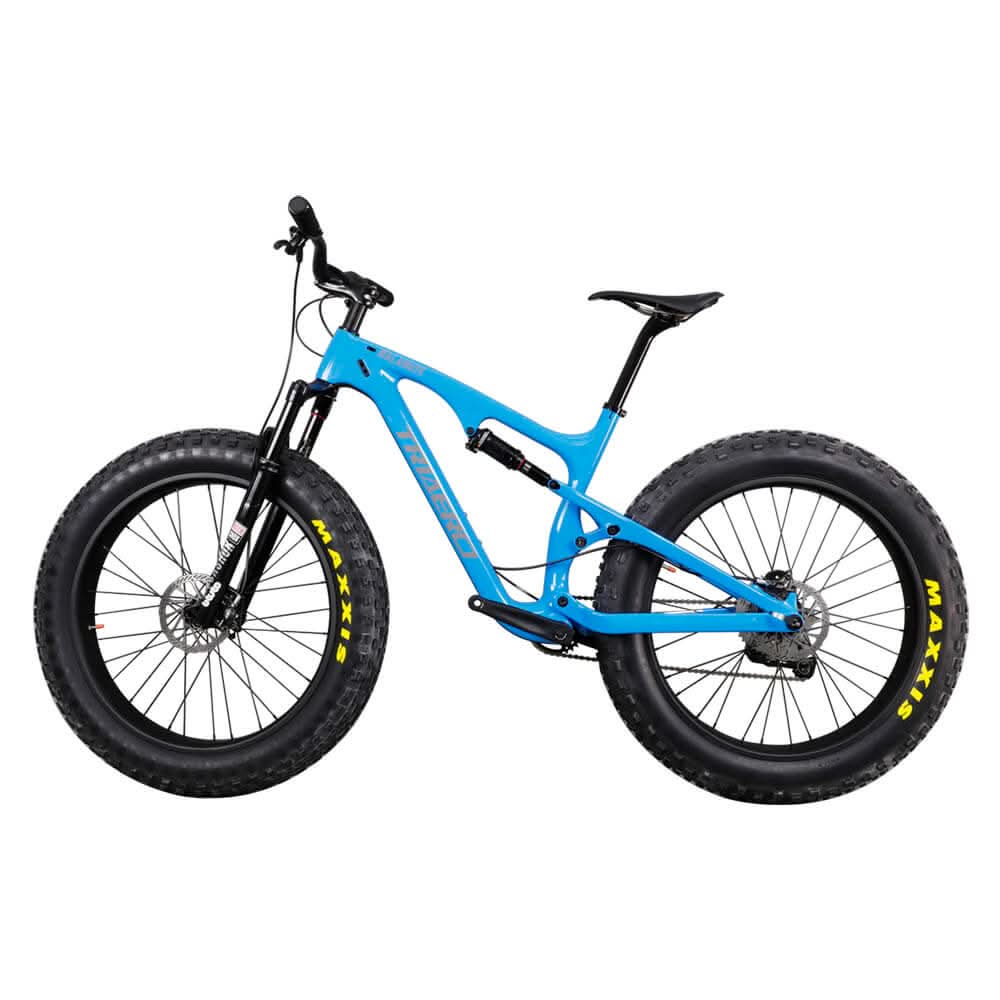

Full Suspension Fat Bike

Product Code: SN04-16-full

Availability:In stock

$ 3,799.00 USD 3,799.00

Available Options


Have you ever thought about a full suspension fat bike? Then day dreamed about a carbon full suspension fat bike? We have met many people who have had that dream and we helped them to realise it, as well as helping them realise it we also managed it at an exceptional price point. Our fully built up SN04 is a dream come true for many people.

Our SN04 frame is constructed from Toray T700 carbon fibre, to allow you to have a high tech and high quality frame with a very low weight. This frame has been designed around the Rock Shox Monarch XX shock and this is what we have fitted for you, giving you a 100m of rear travel. We have teamed this shock up with the leading fat bike fork, the Rock Shox Bluto, also in 100mm of travel.

As our frame is a great value, with its 197mm rear end, internal cable routing, and a 120mm BSA bottom bracket, we felt we should fit with a great value groupset. We have fitted a 1x Shimano XT groupset, you can now get snappy gear changes even when climbing.

To complete the bike and to make your riding as easy as possible we used our carbon fibre finishing kit of seat post, stem, and handlebar. Then to allow you to fit massive tyres easily we have used our own carbon fibre wheels. Which feature sealed bearing wheels and a massive 90mm tubeless ready rim, just as well as the bike comes fitted with 4.8” Maxxis tyres.


    Model: SN04
    Material: Carbon Fiber Toray T700
    Size: 16/18/20 inch
    BB: BSA (120mm)
    Rear Spacing: 12x197mm
    Rear Shock: RS MNR RT3 200x51mm F 380 D2 200x51mm
    Fork: Rockshox Bluto 15x150mm,100mm travel

    Groupset: Shimano XT
    Brakes: Shimano Deore XT Mineral Oil BL-M8000 Japan
    Trigger Shifter: Shimano Deore XT Dyna-SYS11
    Rear Derailleur: Shimano Deore XT Dyna-SYS11
    Chain: XT HG-X11
    Crankset: 30T, 172.5mm Arm Length
    BB Wide: 120mm BSA
    Cassette: Shimano XT CS -M8000 11 Speed 10-42T
    Disc Rotors: Sram 160mm ( front and rear )

    Front Hub: 150mm, Powerway Hub M74, 32 Hole
    Rear Hub: 197mm, Powerway Hub M74, 32 Hole
    Spokes: CN Spoke
    Rims: Carbon, 90mm Wide, 20mm Deep, Clincher Tubeless Ready, UD Matt
    Tires: Maxxis Tire 4.8 inch
    Please note the biggest Tires of the 16-inch size is Maxxis 26*4.0 inch
    Headset: Integrated, Sealed Bearings, H373
    Stem: Carbon, 90mm, UD Matt, ST01
    Handlebar: Carbon, 740mm, UD Matt, HB011
    Seat Post: Carbon, 31.6x400mm, SP01
    Seat Post Clamp: Carbon 34.9mm, CSC01-SL
    Saddle: Carbon Saddle
    Spacer: Carbon, UD Matt, SC002
    Handlebar Grip: Sram Grip

    Complete Bike Weight: 15.95kg ( Pedal not included )
