- Tapered headtube-reduce cross section area, improve performance, reduce wind resistance and enhance aerodynamic effect
- BB92 buttom bracket, wider and stronger torsional rigidity
- Direct mount front derailleur-get the best quality and reliability
- 12x142mm Rear Spacing
- 2 year warranty for manufacturer defects, lifetime crash replacement program ( discount for new frame )

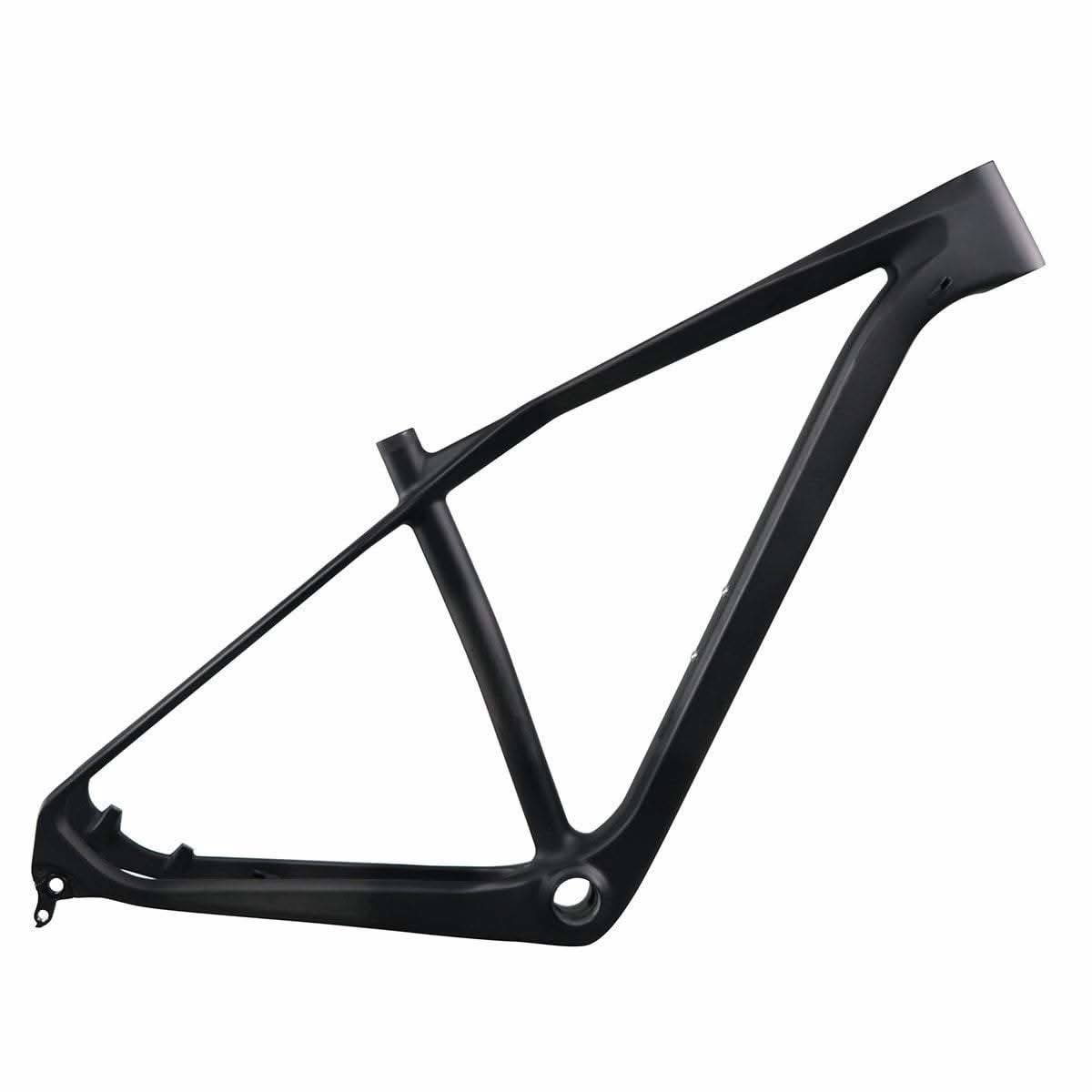

Fancy cross-country mountain biking? Want a waif-like carbon steed to help you to a step on the podium? But you do not want to spend a crazy amount to make this happen? We have built you your dream frame then. Our M17 carbon fibre XC mountain bike frame is just for you.
We have used aerospace grade carbon fibre to make sure that the ride quality of the M17 frame is out of the world. We also know that even if a frame is comfortable that alone will not win races, so we have worked hard to make sure the frame is light and super stiff where you need it to be stiff. We even made sure that your cables stay hidden through our internal routing.
To create a more substantial bottom bracket area we have used a BB92 bottom bracket shell. This gives our engineers more space to play with and look at the size of our chainstays, and down tube, your pedaling effort will not be flexing ant of these carbon tubes. Our chain stays run all the way to a 142 x 12mm rear thru axle, meaning your wheel will have no room to move it will be held tightly in place.
The downtube mates up with our tapered headtube, you will have no problem finding a fork to fit this XC beast. This frame will then go precisely where you point it, and it will not let you take B-lines you will be A-line through all the courses. Our carbon seat stays, and top tube though are designed to help manage the stiffness from below and cancel out any vibrations, adding a bit of vertical compliance to your ride.
|Type||Mountain Bike Frame|
|Material||T700 carbon fiber|
|Frame Weight||1173g(17 inch)|
|Headset||Top 1-1/8",down 1- 1/2"|
|Seatpost Clamp||37 mm|
|Max Tires||29 x 2.3''
IS ICAN WHEELS AND FRAME GOOD?
YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.
WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.
WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.
Why do i feel the freehub is a bit tight when backpedal
When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.
WHAT IS DIFFERENCE BETWEEN AERO OR AERO SPECIAL?
Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.
WHAT'S THE DIFFERENCE BETWEEN ICAN'S RIM ROAD WHEELS?
About the difference,you can check out the info from the image.
What is the difference between Alpha Disc and Aero Disc
The main difference between theses carbon road wheels is rim,spoke,hub.
1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.
2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.
CAN ICAN WHEELS BE SET UP TUBELESS?
For ICAN’s current line up of wheels, most of wheels is tubeless compatible.
What is the best tire size for my ICAN wheels?
The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.
We find(Not necessarily 100% correct):
- With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
- For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
- Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.
What is the recommended tire pressure
If you want the right tire pressure，please read the guide for recommended tire pressure.
What is the suitable spokes tension
MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear ：60% kilograms force of drive side Rear-wheel
Road bike wheels spoke tension：
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force
Recommended maximum spokes tension: Less than 145 kgf.
HOW TO SET UP TUBELESS TIRE TAPE?
More info about tubeless tire tape,to read the guide
How to track my order online?
Once your order has shipped, a Shipping Confirmation email is sent to you with the tracking website and the tracking number. You can use this tracking number to track your order via the carrier's tracking site.
What is the processing time and delivery time for my order?
We will ship out the item within 36 hr with careful package after the processing time .and it takes about 3-10 days if the stock running out. The delivery time will epends on the courier method.
Noted：Due to the impact of the epidemic, the arrival time of the goods will be delayed.Due to increased demand, this product will ship in 7 – 8 weeks. If have any questions,please contact us in time.
How to pay by credit card without paypal account
You can pay by credit card without paypal account. Check the payment guide here.
