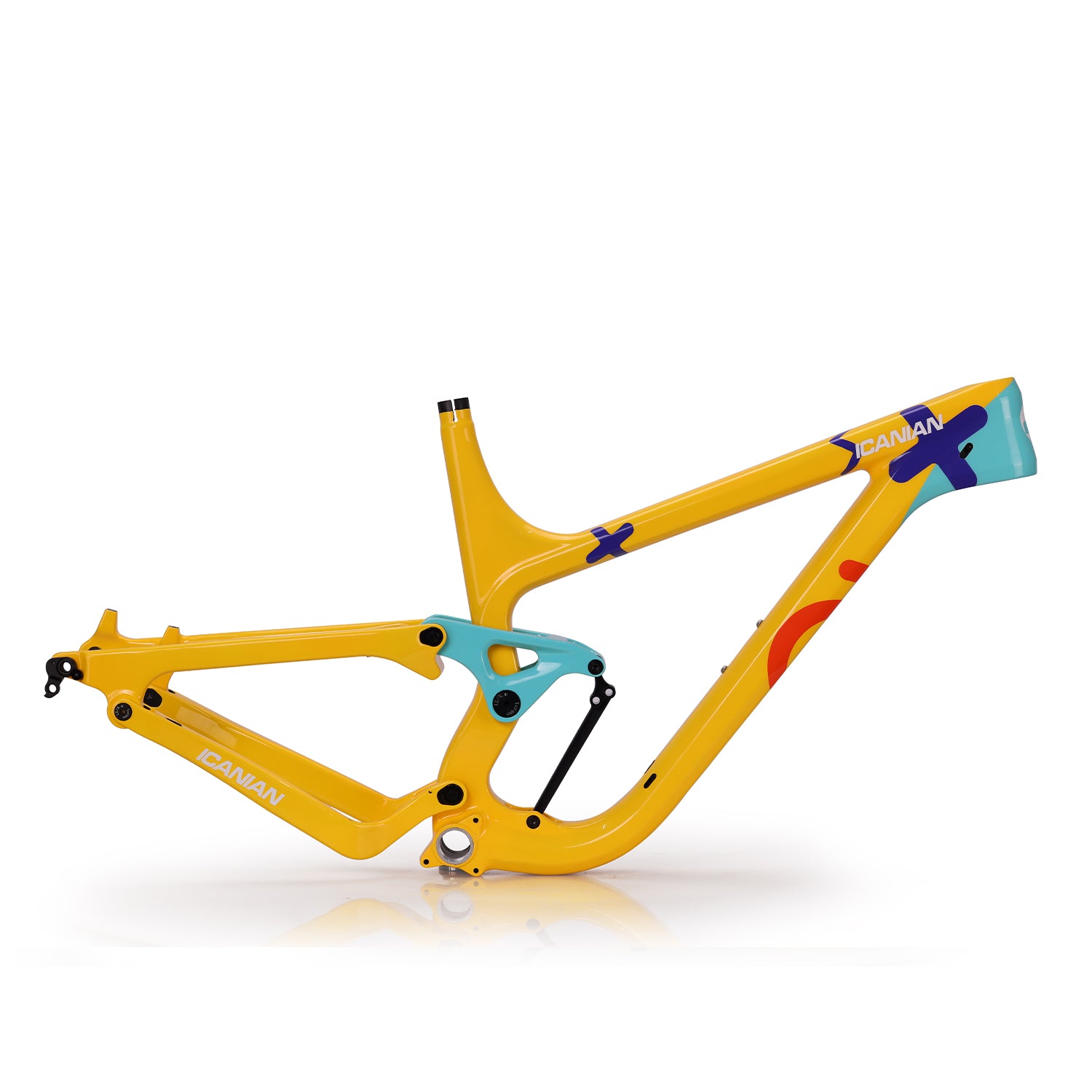

Enduro MTB Frame P9 150mm Travel

ICAN P9 use the wider 148 x 12mm rear boost spacing and 150mm travel, to keep the stiffness of the MTB bike frame and the high speed.

  • The hot sale enduro MTB frame
  • Lighter and stiffer|full suspension
  • 148x12mm rear spaceing
  • Unique frame design
  • Recommend tire size:27.5 x 3.0" or 29 x 2.3"
  • Weight:2400+-20g

Recommended Matched mountain wheels: Enduro F935E, Enduro F945E

Buy the P9 complete bike directly to start your cycling.

NOTE:
US customers, please, order from our US warehouse.

Product Code: FR-P9-UDM-BSA-148-M

Availability:In stock

$ 819.00 USD 819.00

Available Options

Qty

Features

1.The Wider Rear Boost Spacing:148x12mm.


2.Full Toray T700 or T800 carbon fiber bike frame, the basic factor for light and stiff.

3.The BSA Bottom Bracket, fit for more speed crank.

4.The 150mm travel set. Perfect shock absorption structure

Have you spent lots of time picking up one satisfied enduro MTB frame? Hard to find one that is stiff, light, better shock absorption, but affordable enduro MTB frame?
ICAN P9 enduro bike frame won’t let you down, it is constructed out of Toray T700-T800 carbon fiber, full carbon fiber frame to keep the best balance of lightness and stiffness, since ICAN P9 push into the market, they have never met quality problem among riders.

To bring you much more riding pleasure, we use the wider rear boost spacing, 148 x 12mm and 150mm travel, to keep the stiffness of the MTB bike frame and the high speed. you have more choice for wheelset and tires. The great enduro bike frame doesn’t need to be so expensive.

Specs

Material 100% Carbon Fiber Toray T700 & T800
Frame Model 29ER Enduro frame P9
Weave UD Matt/Painting
Available Size XS/S/M/L
Design Wheel/Tire Size 27.5 x 3.0" or 29 x 2.3"
Travel 150mm
Rear Rock size 210 x 55mm
Headset-Upper 1-1/8"
Headset-Lower 1-1/2"
Seatpost 30.9mm
Dropper Compatible (Routing) Yes, internal
Bottom Bracket BSA
Rear Spacing 148 x 12mm
Bottle Mounts 1 per frame
Disc front and rear 160mm, DB3 or DB5
Frame Weight 2400+-20g
IN THE BOX Frame,thru-axle, headset.






carbon 150 mm travel enduro bike

Fancy slaying your local enduro and proving that you are the best local trail slayer? Well, our carbon fiber full-suspension boost mountain bike frame the P9 is the bike frame that you need. With 150mm of travel you can be sure that there is no course too gnarly for this frame, the question is, are you gnarly enough to accept the challenge?


Constructed out of Toray T700 carbon fiber, you can be sure that this high modulus weave will not leave you asking for more. We have used Toray fibers as we find them to be the best in the industry for use in bicycle frame construction. With Toray, we can make the light, stiff, strong, and affordable frame that the industry does not want to admit can exist but we specialize in.

carbon enduro bike p9

To keep this frame ever-reliable we have used the rear boost spacing, 148 x 12mm, to allow us to widen the frame’s rear end. This has the effect of stiffening the frame and giving your pivot bearings a longer life. To go with this, we have fitted an ever reliable BSA bottom bracket; you will spend less time fettling and more time riding. We have also fitted a tapered headtube so that you can be sure that your fork of choice will fit.

Our internal cable and hose routing also adds to this reliability and once set up you will wonder why you thought internal routing could be complicated. Now all you have to do is pick your color, black, white, green, blue or red, and get out and ride.

Euduro bike frame P9 picture

carbon 150 mm travel enduro frame
carbon 150 mm travel enduro frame
carbon 150 mm travel enduro frame

ICAN full suspension frame P9

full suspension frame P9

Why choose the 150mm travel suspension frame

150mm travel might be the sweet spot for around mountain bike riding and a spot of enduro racing. What though if we told you that you could have a nice 150mm travel bike and it will not weigh the earth and more importantly it could be a carbon fiber frame that will leave you money for the post-ride latte?

Thanks to the hard work of our team of engineers now you can. We have sculpted this full suspension mountain bike frame out of the excellent Toray T700 carbon fiber. We use Toray as its quality is assured and our engineers are so skilled in its use that we can build lightweight frames with some of the best touches.

As you can imagine we have used internal routing to make sure that all your cables and hoses are hidden away from the environment and accidental snagging on the trees surrounding your romps through the woods.

To help you pedal up hills, we have fitted this enduro frameset with a BB92 shell. This has allowed our engineers to widen and stiffen the frame. Making pedaling a more pleasurable activity. However, all these great features would not matter if you could not get this frame in a color that you like. As such we have them available in matte black, green, yellow, purple, or blue. Now all you need to do is work out which frame matches your helmet, and you are good to go.

What is difference between Aero or Aero special?

Let us take Aero 40 and Aero 40S as an example. Have a look for their difference.

IS ICAN WHEELS AND FRAME GOOD?

YES! Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.

What is the best tire size for my ICAN wheels?

The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.

We find(Not necessarily 100% correct):

  • With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire.
  • For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice.
  • Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.

What is the recommended tire pressure

If you want the right tire pressure,please read the guide for recommended tire pressure.

WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.

WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.

Why do i feel the freehub is a bit tight when backpedal

When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.

CAN ICAN WHEELS BE SET UP TUBELESS?

For ICAN’s current line up of wheels, most of wheels is tubeless compatible.

WHAT'S THE DIFFERENCE BETWEEN ICAN'S SERIES PRODUCTS?

About the difference,you can check the image.

the difference between wheels

What is the difference between Alpha Disc and Aero Disc

The main difference between theses carbon road wheels is rim,spoke,hub.

1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.

2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.

What is the suitable spokes tension

MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear :60% kilograms force of drive side Rear-wheel

Road bike wheels spoke tension:
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force

Recommended maximum spokes tension: Less than 145 kgf.

More spoke tension info here.
