XC Bike Frame S3

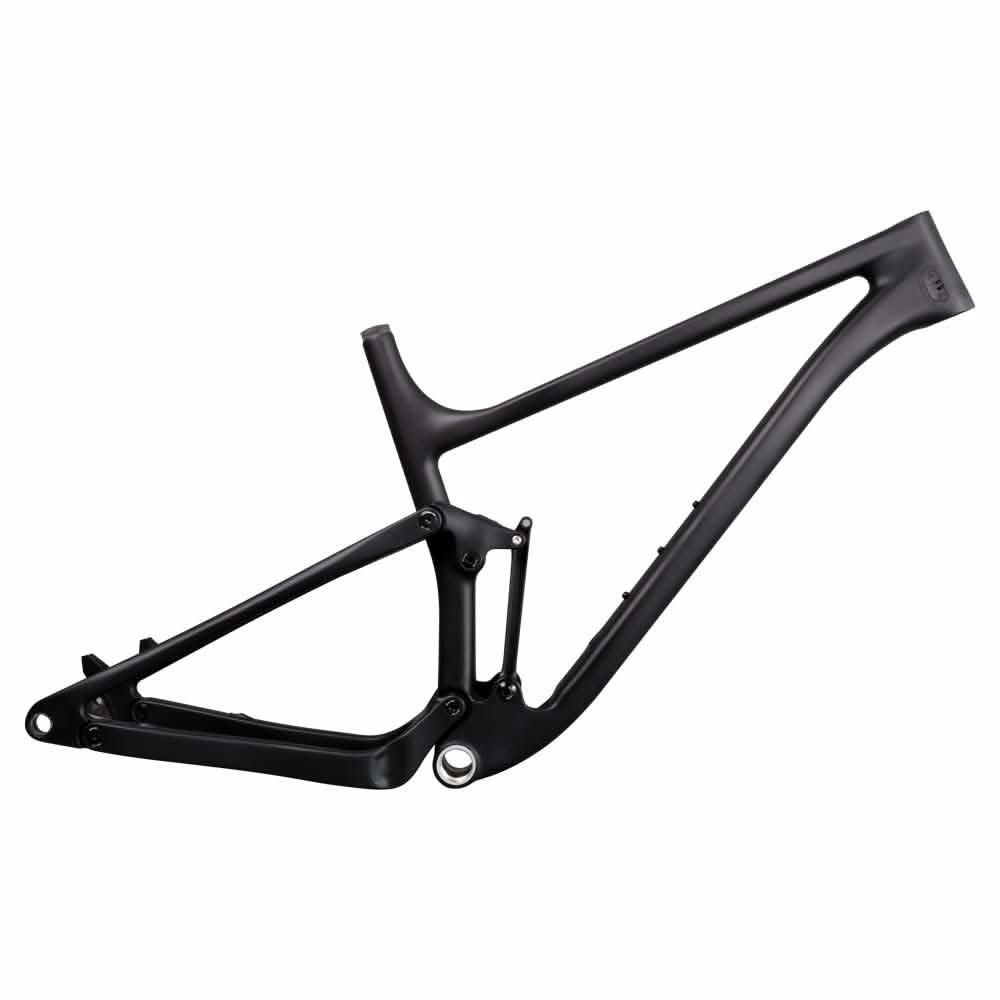

The XC Full Suspension MTB Bike Frame S3 is the latest carbon frame 2021 from ICAN

Product Code: S3-Golden-BSA-S

Availability:In stock

$ 790.00 USD 790.00

Available Options

The Best XC full suspension MTB Boost frame S3

 XC Full Suspension MTB Bike S3 is the latest cross country bike frame from ICAN Cycling in 2021,which has perfect performance and features.

1. Full suspension carbon 29er mountain bike frameset, weighing 2280 grams.
2. The compact rear triangle has a shock-absorbing chain.
3. The stroke is 122mm, and the rear shock absorber is 165*40mm
4. Three-point joint damping geometry.
5. Tapered head tube design.

The Features Of  XC Full Suspension MTB Bike S3

Material

100% full toray carbon fiber
Frame Model Cross Country Bike Boost
Weave UD Matt/Painting
Available Size S/M/L/XL
Design Wheel/Tire Size 27.5"*2.8" or 29"*2.35"
Travel 100mm
Rear Rock travel 165(length)*40mm(travel)
Headset-Upper 1-1/8"
Headset-Lower 1-1/2"
Seatpost 31.6mm
Max chainring: 36T
Bottom Bracket BSA
Rear Spacing 148 x 12mm
Bottle Mounts 1 per frame
Disc front and rear 160-180mm
Frame Weight 2280+-20g
maximum insert length of the seatpost 150mm 180mm 230mm 280mm



When we choose a cross-country (XC) mountain bike, stiffness, strength and comfort are the factors we need to consider. Obviously, if you need to ride downhill or all-mountainously, a full suspension XC mountain bike is more suitable for you than a hardtail bike.

The fact is that buying a high-end full suspension xc mountain bike is not cheap. If you are an experienced racer, you can assemble a full suspension xc mountain bike by yourself. I suggest you buy a full suspension carbon fiber mountain bike frame and wheels separately, which It will greatly reduce your cost and be able to feel fun because he will be like your child.

We all know that designing and riding a full-suspension mountain bike frame is not easy, especially for novices who are downhill. Safety is always our top priority, and it is also our basic rule for constructing each framework. This year, we will update the MTB frame to a new level. With the mature technology of Toray T800 + T1000 carbon fiber, we can create a stronger and stronger frame.

This complete suspended MTB frame is not light, weighing 2280 grams, but you will see a lot of safety details on this frame!



IS ICAN CYCLING WHEELS AND FRAME GOOD?
YES!Many customers have purchased wheels and frames of ICAN Cycling, and they give us many good feeback.All products undergo strict quality control and provide two years warranty.

What is the best tire size for my ICAN wheels?

The best tire size for your wheel, which depends on the wheelsets type, size and the conditions you plan to ride the wheel in.
If you focus on speed,aerodynamic, each carbon wheel will have a specific recomended tire width, which is listed on specific product pages under rim specs.

We find(Not necessarily 100% correct): With a broader external width, ICAN Cycling wheels roll most optimally with a 25mm/28mm (actual width) tire. For Jet wheels, we recommend 25mm (actual width) tires, but 28mm (actual width) tires are still an excellent choice. Unless a podium step hangs in the balance, the difference in the speed of the Jet, using a 25mm tire versus a 28mm tire, works out to only 0.05 kph. That’s approximately 3 – 4 seconds over 40km.

HOW TO DISTINGUISH DISC BRAKES AND V BRAKES
Our disc brake product series are marked with disc, which means that this is a disc brake system. Otherwise, this product is a V brake product.

WHY THE SAME PRODUCT HAS DIFFERENT PRICES
The prices of the same products in different warehouses are different. We have prepaid taxes and freight for users who purchase products in overseas warehouses.

WHY THE WHEELSETS ARE TOO STIFF FOR HARDTAIL
The reason may be that the spokes tension of wheels is too high. Please check that the spokes tension to make it at a the proper range.

Why do i feel the freehub is a bit tight when backpedal

When riding for the first time, freehub needs to run in with the wheels. Just ride for a while, freehub will run well.

CAN ICAN WHEELS BE SET UP TUBELESS?

For ICAN’s current line up of wheels, most of wheels is tubeless compatible.

WHAT'S THE DIFFERENCE BETWEEN ICAN'S SERIES PRODUCTS?

About the difference,you can check the image.

the difference between wheels

What is the difference between Alpha Disc and Aero Disc

The main difference between theses carbon road wheels is rim,spoke,hub.

1.Aero disc is lighter than Alpha disc,Aero disc use our superlight carbon rim. Alpha disc use our fast and light normal carbon rim.

2.Aero disc integrate Sapim CX-Ray Spokes,Alpha disc integrate Pillar SA1423 Spokes.
3.Alpha Disc with ICAN D21 Hub, Aero disc with ICAN D01 Hub.

What is the suitable spokes tension

MTB Wheels the front spoke tension :110 +-10 kilograms force
Rear wheel drive side :120 +-10 kilograms force
No drive side Rear :60% kilograms force of drive side Rear-wheel

Road bike wheels spoke tension:
front wheel: 110+-10 kg force
Rear wheel: 120+-10 kg force

Recommended maximum spokes tension: Less than 145 kgf

How to track my order online?

Once your order has shipped, a Shipping Confirmation email is sent to you with the tracking website and the tracking number. You can use this tracking number to track your order via the carrier's tracking site.

What is the processing time and delivery time for my order?

We will ship out the item within 36 hr with careful package after the processing time .and it takes about 3-10 days if the stock running out. The delivery time will epends on the courier method.

Noted:Due to the impact of the epidemic, the arrival time of the goods will be delayed.Due to increased demand, this product will ship in 7 – 8 weeks. If have any questions,please contact us in time.
